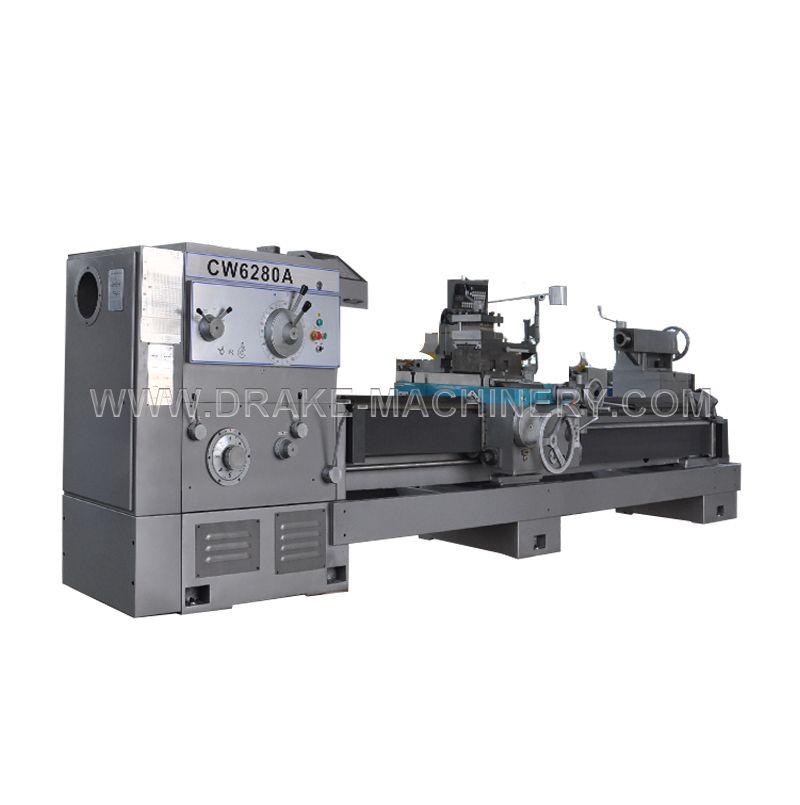

Detalles de producto
El riel guía de la mesa del torno está templado y finamente rectificado mediante ultra frecuencia de audio, con una larga vida útil. El engranaje está rectificado con precisión y el ruido de toda la máquina es bajo.
El sistema de husillo tiene buena rigidez y alta precisión.
La caja del conducto está equipada con un mecanismo de avance y retroceso rápidos.
El cabezal está equipado con un mecanismo de embrague hidráulico, que puede arrancar suavemente y frenar rápidamente.
La plataforma está provista de una ranura para dientes de retención del contrapunto.
Tamaño del producto
Ninguno
Parametros del producto
| TECHNICAL SPECIFICATIONS | ||||||
| Item | Model | CW6163A/CW6263A | CW6180A/CW6280A | |||
| Max.swing diameter | Over bed | ∅630mm | ∅800mm | |||
| Over carriage | ∅370mm | ∅510mm | ||||
| In gap（Only for 62 series） | ∅830mm | ∅1000mm | ||||
| Width of bed | 560mm | |||||
| Max.length of workpiece(Two centers) | 1000/1500/2000/3000/4000mm | |||||
| Maximum turned length | 650/1150/1650/2650/3650mm | |||||
| Effective gap length | 310mm | |||||
| Max.weight of work piece(between centers) | 2000kg | |||||
| Spindle | Spindle nose | D11 | ||||
| Spindle bore | ∅105mm | |||||
| Taper of bore | Metric ∅120 1：20 | |||||
| Number of speeds | 18 Steps | |||||
| Range of speeds | 7.5-1000r/min | |||||
| Pitch of longifndinal ball screw/diameter | 12mm/∅55mm | |||||
| Number of longifudinal leeds | 64 | |||||
| Range of longifudinal leeds | Range of longifudinal leeds（1：1） | 0.1-1.52r/min | ||||
| Range of longifudinal leeds（10：1） | 1.6-24.3r/min | |||||
| Number of cross leeds | 64 | |||||
| Range of cross leeds | half of longifudinal leeds | |||||
| Thread culting | Metric range/No | 1-240mm/50 | ||||
| Inch range/No | 14-1T.P.I/26 | |||||
| D P. Range/No | 28-1D.P/24 | |||||
| Module range/No | 0.5-120M.P/53 | |||||
| Rapid traverse | Longitudinal | 4000mm/min | ||||
| Cross | 2000mm/min | |||||
| Tailstock sieeve | External diameter | ∅100mm | ||||
| Taper of bore | M.T.No.6 | |||||
| Max.traverse | 230mm | |||||
| Verical distance from spindle center to installing basis | 33mm | |||||
| Max.travel of top slide | 200mm | |||||
| Swing angle of tool post | ±90° | |||||
| Max.cross slide travel | 440mm | 480mm | ||||
| Max.size of tool shank(W×H) | 32×32mm | |||||
| Power oi main motor(double speeds) | 11KW | 注：●可选配 | ||||
| Rapid feed motor power | 1.1KW | |||||
| Cootant pump power | 90W | |||||
| Overall dimensions(L×W×H) | 3275/3725/4225/5225/6276×1393×1537mm | |||||
| Net weight | 3400/3700/4200/4700/5800kg | 3600/3900/4400/4900/6000kg | ||||
| Optional | Steady rest | ● | ||||
| Follow rest | ● | ○不可选配 | ||||
| Protection | Chuck guard | ● | ||||
| Tool post guard | ||||||
| Leadscrewguard | ||||||
| Above specifications can be customized against clients' request. | ||||||
| All specifications are subject to our final confirmation. | ||||||
-
