For CNC machine operators, there's nothing more frustrating than a stuck Chuck. When the chuck isn't functioning properly, an entire production line can get shut down. When the machine Chuck malfunctions, damage can occur to the CNC machine as well as to the tools and workpieces. All of it can take a lot of time and money to fix. Following a troubleshooting protocol will help identify and correct problems with the chuck.

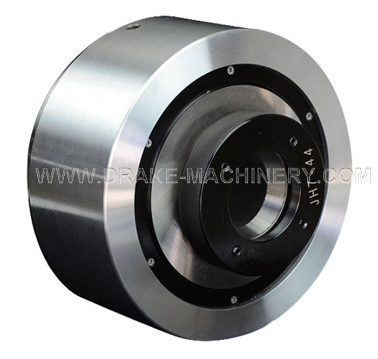

The Chuck on a CNC machine is used to hold a workpiece while it is being formed. The chuck centers the piece before commencing work and then releases the workpiece so the next one can get started. Most CNC machines use a hydraulic (fluid-driven) or pneumatic (air-driven) system to operate the Chuck. Proper maintenance and service routines can help avoid issues, however, like all machinery, things happen and breakdowns occur. Understanding the chuck's functionality as well as its engineering will go a long way toward resolving problems. It is recommended all machine operators read and understand the manufacturer's operating manual as well as learn about the design and engineering behind the machine's mechanics.
There are some specific steps operators can take that will help identify and resolve problems. Listed below are recommended troubleshooting steps that will help:
ㆍCheck the power source and pump assembly for all hydraulic or pneumatic lines connected to the chuck. Leakage may be seen indicating a possible drop in operating pressures resulting in Chuck malfunction.
ㆍCheck pressure control valves for the hydraulic or pneumatic pump to determine if they are set correctly.
ㆍTake a look at the foot pedal and verify all connections are in place as well as contact surfaces are clean and debris-free. Verify the foot pedal is working properly by watching the operation screen for the input power signal. If it is showing input power, next check that output power is going through to the PLC.
ㆍCheck the Programmable Logic Control (PLC) switch to make sure it is activating and not blocked in any way. Power from the foot pedal may not be connected to the PLC.
ㆍTry using the MDI-M (Manual Data Input) code in the operating program to get the Chuck to function. If it does, the problem probably rests with the foot pedal.
For some CNC machine operators, it doesn't take much to let them know something isn't right with their machine. Visual inspections can provide a lot of information concerning machine conditions and functionality. Performing a daily, and in some cases hourly, visual inspection of the CNC machine's components can help reduce downtime.
Paying attention to the machine Chuck's function as it works can also pay dividends as there may be odd sounds that accompany the chuck's operation. Following the manufacturer's recommendations for service and maintenance is always the best policy. Beyond that, maintaining a good relationship with the local service dealer's repair technicians can also be a real boon when things are working right. Don't be afraid to make a call and gain the knowledge to keep CNC machines operating at peak performance levels.
