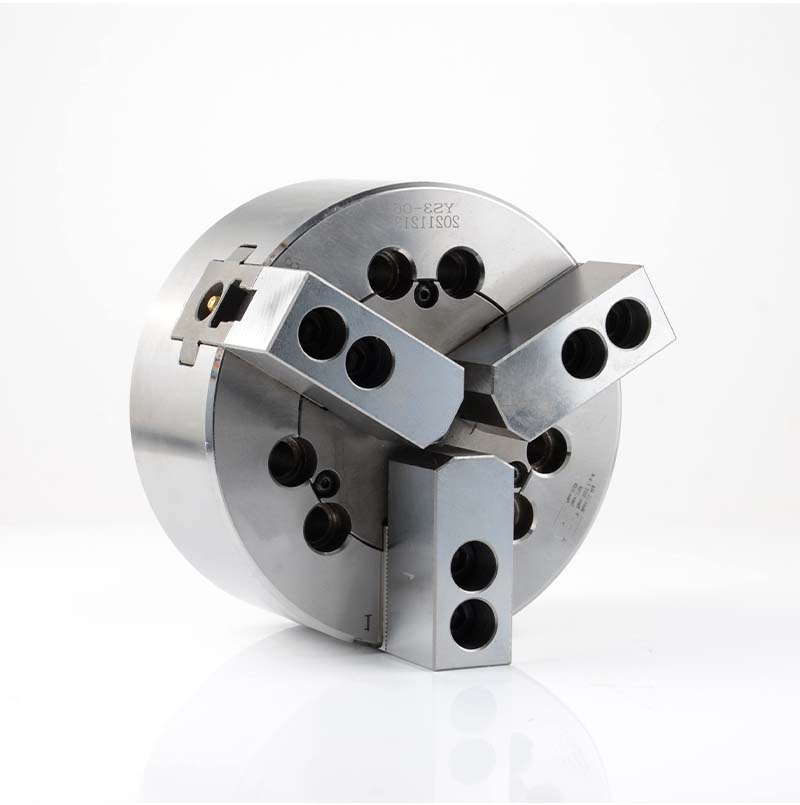

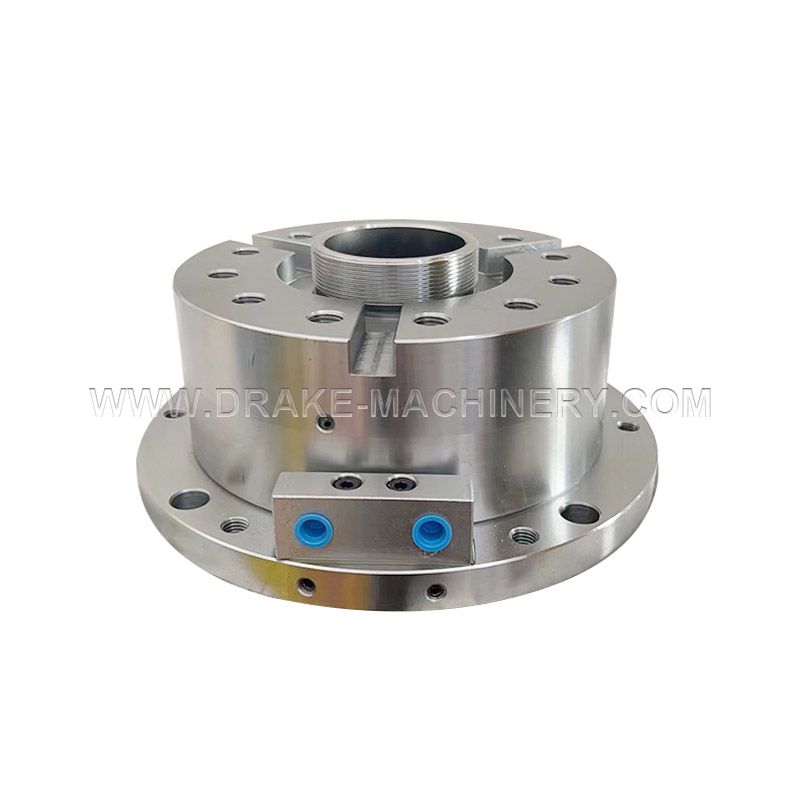

| YSC 3-JAW SLOID POWER CHUCKS | ||||||||||||
| It is suitable for processing general machinery parts and it is cost-efficient. (Type: two jaws; three jaws) | ||||||||||||
| DIMENSIONS | A (mm) | B (mm) | C(H6) (mm) | F (mm) | G (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N max (mm) | N min (mm) | |
| TYPE | ||||||||||||
| YS3-06C | 165 | 74 | 140 | 5 | 116 | 104.8 | 6-M10 | 14 | 20 | 37.8 | 33.55 | |
| YS3-08C | 210 | 85 | 170 | 5 | 150 | 133.4 | 6-M12 | 18 | 25 | 46.3 | 41.90 | |
| YS3-10C | 254 | 89 | 220 | 5 | 190 | 171.4 | 6-M16 | 20 | 30 | 51.4 | 47.00 | |
| DIMENSIONS | O man. (mm) | O min. (mm) | P man. (mm) | P mln. (mm) | Q (mm) | R (mm) | S (mm) | T (mm) | U (mm) | V (mm) | W (mm) | X (mm) |
| TYPE | ||||||||||||
| YS3-06C | 18 | 7.5 | 101.5 | 81.5 | 31 | 12.0 | 36 | 4 | M16×2.0P | 34 | 39 | 73 |
| YS3-08C | 22.5 | 9 | 127 | 106.0 | 35 | 14.0 | 36 | 5 | M20×2.5P | 38 | 42 | 95 |
| YS3-10C | 37.5 | 10.5 | 158 | 133.0 | 40 | 16.0 | 36 | 5 | M20×2.5P | 45 | 46 | 110 |
| DIMENSIONS | Plunger Stroke (mm) | JawStroke (DIA.mm) | Max.Speed (min-1) | Max.Pull Force kgf(KN) | Max.Gripping Force kgf(KN) | Matching Cylinder | Gripping Range (mm) Max Min | Max.Pressure kgf/cm2(Mpa) | Weigt(kg) | |||
| TYPE | ||||||||||||
| YS3-06C | 20 | 13 | 5000 | 1730(17) | 5200(51) | SH100 | 165 | 19 | 27(2.6) | 13.0 | ||
| YS3-08C | 21 | 16.2 | 4600 | 2440(22) | 7440(73) | SH125 | 210 | 23 | 25(2.5) | 25.0 | ||
| YS3-10C | 25 | 18.1 | 4000 | 2850(28) | 10810(103) | SH150 | 254 | 24 | 29(2.8) | 37.0 | ||
-
